HEAVY COMMERCIAL | LIGHT COMMERCIAL | COASTAL AREAS

DRAINABLEWRAP™
COMMERCIAL.

Rugged as the workweek is long, here’s a wrap built to stand up strong on your toughest jobsites. And provide extra punch in beating excess H2O.

LET IT POUR.

Wind-driven rain and bulk water can compromise a structure. But TYPAR® DrainableWrap Commercial channels moisture safely away. It’s all thanks to our patented meltshot technology that adds an integrated layer of fibers to create a smart, highly effective drainage plane.

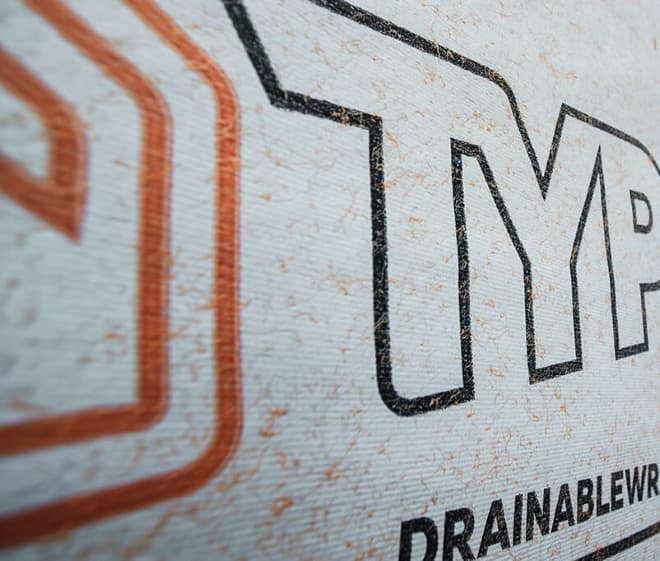

Close up of weather resistant drain wrap barrier on building

STRONGER AS A SYSTEM.

TYPAR DrainableWrap Commercial is ready to go to work right alongside our full lineup of high-performance flashings, tapes, and accessories. Put it all up together to shut down all points of unwanted intrusion—plus receive DrainableWrap Commercial’s 10-year warranty that covers labor and materials.*

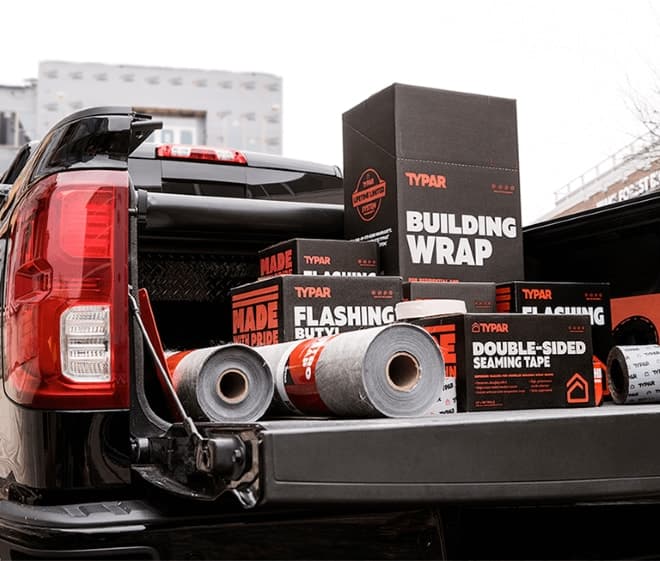

TYPAR building fabric wrap, flashings, and tapes in a truck bed

NO COMPROMISING.

To choose the best wrap for your project, you’ve got to consider all the challenges. TYPAR DrainableWrap Commercial is ideal for wet, coastal climates, not to mention any project where a higher level of drainage efficiency is called for in the spec. No matter where you’re building, it’s the total package with the ruggedness, air holdout, and breathability we’re known for.

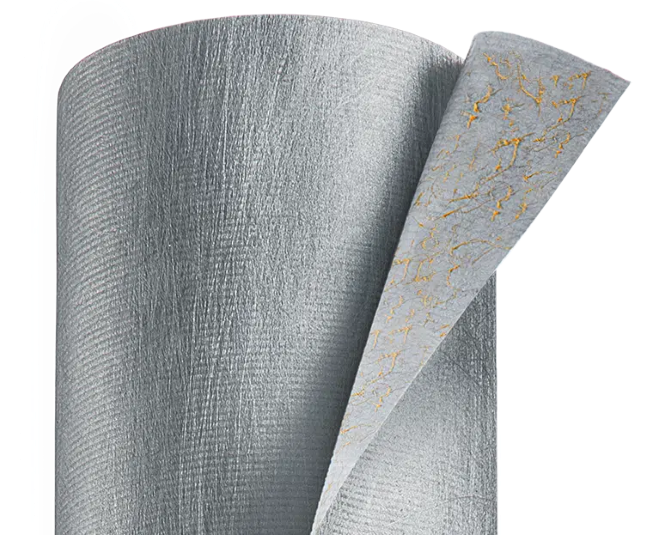

close up roll of drain wrap NO COMPROMISING in all weather conditions

ENTER YOUR ZIP CODE TO FIND DRAINABLEWRAP COMMERCIAL NEAR YOU.

CTA Form
 construction fabric SHEDS BULK WATER icon

SHEDS BULK WATER.

Exceeds minimum code requirements for drainability.

construction fabric BOOSTS ENERGY EFFICIENCY icon

BOOSTS ENERGY EFFICIENCY.

Superior air and water holdout reduces energy costs.

building fabric wrap HOLDS TIGHTER DURING CONSTRUCTION icon

HOLDS TIGHTER DURING CONSTRUCTION.

Tear-strength 5x greater than the competition.

building fabric wrap material STANDS UP TO SUNLIGHT icon

STANDS UP TO SUNLIGHT.

Leave exposed for up to 12 months with no UV degradation.

 drain wrap RESISTS SURFACTANT DAMAGE icon

RESISTS SURFACTANT DAMAGE.

Handles harsh chemicals and jobsite cleaning techniques.

DRAINABLEWRAP™ COMMERCIAL Specs

Typical Characteristics


CHARACTERISTICTEST METHODVALUE
BASIS WEIGHTD52613.8 oz/yd2
TOTAL THICKNESSD177720 mils
DRAINAGE EFFICIENCYE227396.7%
BREAKING STRENGTH
(GRAB TENSILE)
D503493 lbs MD
95 lbs CD
TRAPEZOIDAL TEAR
RESISTANCE
D453360 lbs MD
67 lbs CD
HYDROSTATIC PRESSURE
RESISTANCE
AATCC
127-1995
>500 cm
MOISTURE VAPOR
TRANSMISSION RATE
E96-95 A10 perms
ULTRAVIOLET LIGHT
EXPOSURE RESISTANCE
 12 months
AIR PENETRATION RESISTANCE
(GURLEY HILL POROSITY)
 >4800 sec/
100 cc
WATER RESISTANCE TESTD779PASS
FLAME SPREAD INDEX Class A
SMOKE SPREAD INDEX PASS
NFPA 285 PASS
“AIR-INS”(AIR LEAKAGE TEST)E1677PASS
.0038 L(S.M2)
@ 75 PA

Downloads

Download TYPAR DrainableWrap Commercial 3-Part Specification
TYPAR DrainableWrap Commercial 3-Part Specification
Download DrainableWrap Commercial Installation Guide
DrainableWrap Commercial Installation Guide
Download DrainableWrap Commercial Sell Sheet
DrainableWrap Commercial Sell Sheet
Download TYPAR Commercial Lineup Overview
TYPAR Commercial Lineup Overview
