RESIDENTIAL | MULTI-FAMILY | COMMERCIAL
The visibility you want. With the sealing power you need.

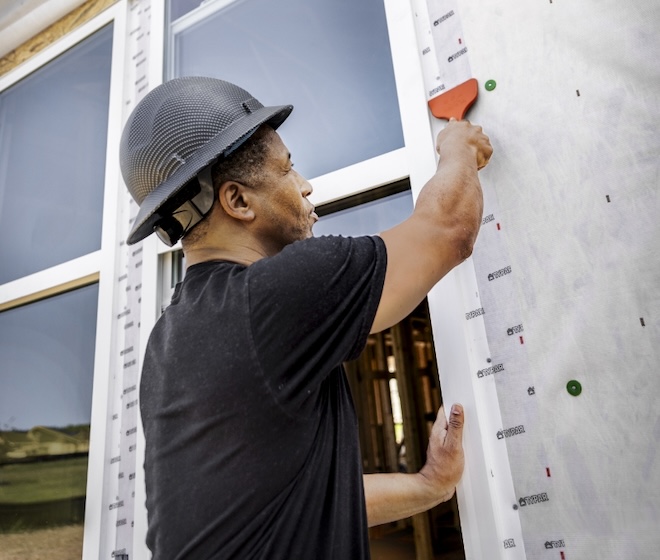

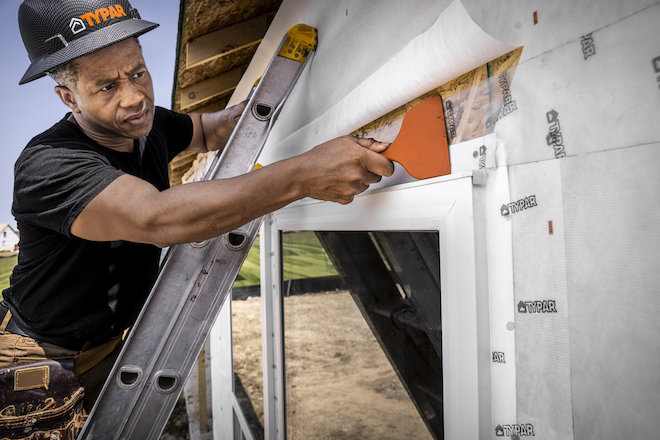

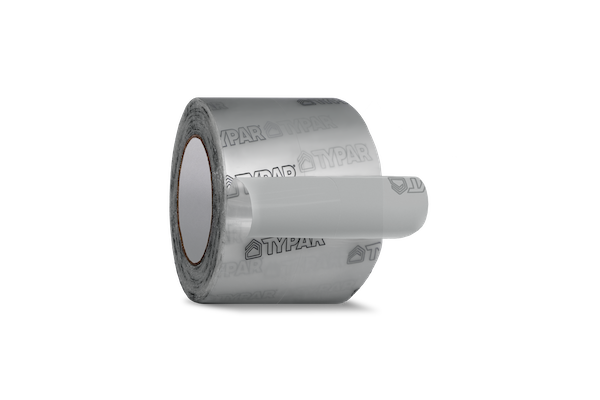

We made TYPAR Clear Acrylic Flashing to solve a problem. Opaque flashings cover up the pattern on window nail/ screw fins. Now, you see it without feeling around by hand, or worse, trying to pull adhesive that’s already stubbornly stuck on. You’ll save time in making sure the window is properly installed and give inspectors an easier way to approve your work. There’s nothing else like it around.
You don’t need us to tell you. Water intrusion around windows is one of the leading causes of callbacks on building projects. TYPAR Clear Acrylic Flashing helps you head oø the costs and frustration by making it easier to visibly verify windows are installed correctly and sealed tight from the get-go. On large apartment or other multi-family projects with lots of windows, this advantage can be exponential.
TYPAR Clear Acrylic Flashing is as strong a solution as it is clever. Designed with premium, advanced acrylic adhesive, it’s waterproof, self-sealing, and able to be applied even under cold conditions. It also packs nine months of UV resistance and delivers the assurance of meeting industry standards (AAMA 711-22).
| CHARACTERISTIC | TEST METHOD | VALUE |
|---|---|---|
| TOTAL THICKNESS | 12 mils w/ release liner | |
| FACER THICKNESS | 5 mils | |
| ADHESIVE THICKNESS | 4.5 mils | |
| PEEL ADHESION TO SUBSTRATES: | ||
| OSB | 4.2 (lb/in) | |
| ANODIZED ALUMINUM VINYL | 9 (lb/in) | |
| PLYWOOD | 8.3 (lb/in) | |
| ALUMINUM | 9 (lb/in) | |
| ADHESIVE | Acrylic Adhesive | |
| APPLICATION TEMPERATURE RANGE | 30°F (-1°F) to 200°F (93°C) | |
| RELEASE LINER | Split-back Polypropylene Film | |
| BREAKING STRENGTH (GRAB TENSILE) | ASTM D5034 | 30 lbs |
| ULTRAVIOLET LIGHT EXPOSURE RESISTANCE | 9 Months | |
| COLD TEMPERATURE PLIABILITY | ASTM D3330 | PASS |
| NAIL SEALABILITY | ASTM D1970 | PASS |
Install the system. Get a lifetime limited warranty.* TYPAR Clear Acrylic Flashing, along with the full TYPAR® Weather Protection System, delivers coverage and confidence that can’t be touched. That’s why we call it the best in the business.
*TYPAR Clear Acrylic Flashing is part of the TYPAR lifetime limited system warranty when used with the complete TYPAR Weather Protection System. Certain limitations and exclusions apply. See the TYPAR Weather Protection System Limited Warranty for full details located online at www.typar.com/downloads.
