RESIDENTIAL | LIGHT COMMERCIAL | COASTAL CLIMATES

DRAINABLEWRAP™
PEEL AND STICK.

Bulk water defense. Speed of installation. Plus the backing of our superior system. It all comes together in rugged, smart TYPAR® DrainableWrap Peel and Stick.

HANDLES THE EXCESS.

TYPAR DrainableWrap Peel and Stick is designed with a specially integrated drainage gap, giving it the ability to shed excess moisture more rapidly than conventional housewraps.

Enquire

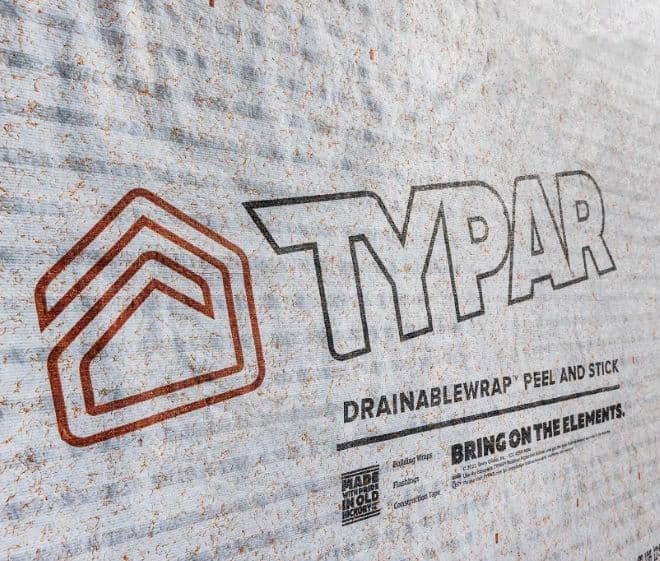

Drainable wrap peel and stick up close

KEEPS YOU MOVING.

Available in 58” rolls, TYPAR DrainableWrap Peel and Stick covers more area more quickly than the average peel-and-stick, so you get an edge in staying on schedule.

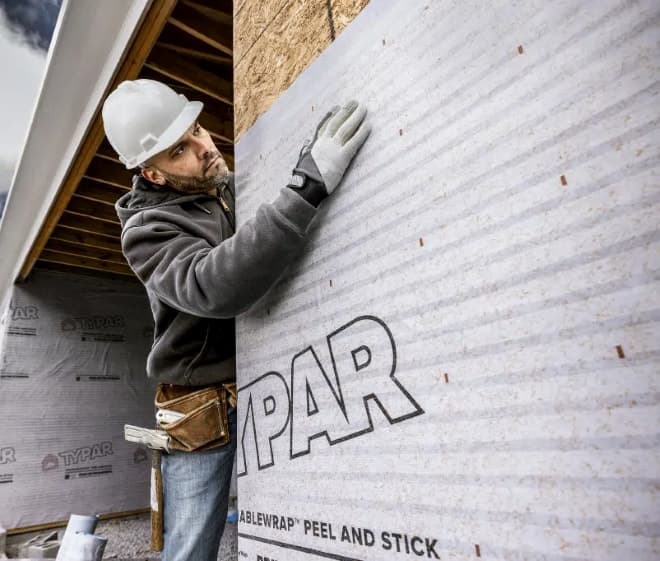

Construction worker installs weather smart wrap to home

STRONGER AS A SYSTEM.

TYPAR DrainableWrap Peel and Stick is ready to go to work right alongside our full lineup of high-performance flashings, tapes, and accessories. Put it all up together to shut down all points of unwanted intrusion—plus get our unbeatable limited lifetime system warranty.*

Contact Us

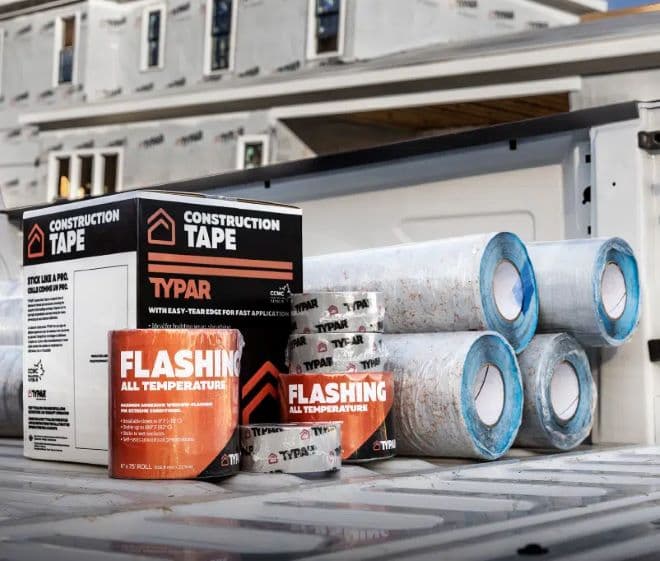

TYPAR peel and stick vapur barrier, flashings, and tapes in a truck bed

DRAINABILITY. WITH DEPENDABILITY.

Choosing the best housewrap for your project shouldn’t involve compromise. TYPAR DrainableWrap Peel and Stick helps you conquer the challenges of building in wet, coastal climates. And, it delivers the exceptional tear strength, holdout, and breathability our material is known for.

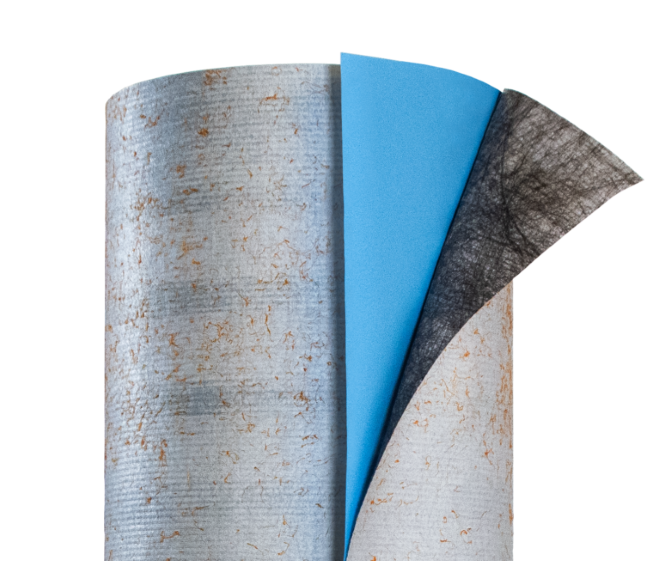

peel and stick vapor barrier roll - DRAINABILITY. WITH DEPENDABILITY.

ASK ABOUT AVAILABILITY.

CTA Form
PEEL AND STICKweather smart house wrap

PEEL-AND-STICK

Forget fasteners. Adheres easily to a variety of substrates.

 peel and stick house wrap BREATHES SAFELY icon

BREATHES SAFELY.

Optimal perm rating allows moisture to safely escape interiors.

peel and stick building wrap SHEDS BULK WATER icon

SHEDS BULK WATER.

Exceeds minimum code requirements for drainability.

weather resistant peel and stick house wrap HOLDS TIGHTER DURING CONSTRUCTION icon

HOLDS TIGHTER DURING CONSTRUCTION.

Tear-strength 5x greater than the competition.

DELIVERS HOLDOUT POWER.

DELIVERS HOLDOUT POWER.

Exceptional ability to block water and air intrusion.

weather resistant vapor barrier STANDS UP TO SUNLIGHT icon

STANDS UP TO SUNLIGHT.

Leave exposed for up to 6 months with no UV degradation.

DRAINABLEWRAP™ PEEL AND STICK Specs

Typical Characteristics


CHARACTERISTICTEST METHODVALUE
BASIS WEIGHTD52614.2 oz/yd2
TOTAL THICKNESSD177722.9 mils
DRAINAGE EFFICIENCYE227394.8%
BREAKING STRENGTH
(GRAB TENSILE)
D503467 lbs MD
73 lbs CD
TRAPEZOIDAL TEAR
RESISTANCE
D453330 lbs MD
33 lbs CD
HYDROSTATIC PRESSURE
RESISTANCE
AATCC 127-1995>500 cm
MOISTURE VAPOR
TRANSMISSION RATE
E96-9510 perms
ULTRAVIOLET LIGHT
EXPOSURE RESISTANCE
 6 months
AIR PERMEANCEE2178<.01 l/m2 @ 75 Pa
AIR PENETRATION RESISTANCE
(GURLEY HILL POROSITY)
 >2500 sec/
100 cc
WATER RESISTANCE TESTD779PASS
FLAME SPREAD INDEX Class A
SMOKE SPREAD INDEX PASS

Downloads

Download DrainableWrap Fact Sheet
DrainableWrap Fact Sheet
Download DrainableWrap Peel and Stick Sell Sheet
DrainableWrap Peel and Stick Sell Sheet
Download DrainableWrap Peel and Stick Installation Guide
DrainableWrap Peel and Stick Installation Guide
Download DrainableWrap Peel and Stick 3-Part Specification
DrainableWrap Peel and Stick 3-Part Specification
Warranty Logo

LIFETIME LIMITED SYSTEM WARRANTY.*

Install the system. Get a lifetime limited warranty.* TYPAR DrainableWrap Peel and Stick, along with the full TYPAR® Weather Protection System, delivers coverage and confidence that can’t be touched. That’s why we call it the best in the business.


LIMITED
LIFETIME
WRAPS
LABOR
ACCESSORIES
+ MATERIALS
Typar Logo
Orange Tick
Orange Tick
Orange Tick
Orange Tick
LEADING COMPETITOR

Black Tick
Black Tick

Typar Logo
LEADING COMPETITOR
LIMITED LIFETIME
Orange Tick

WRAPS
Orange Tick
Black Tick
LABOR
Orange Tick
Black Tick
ACCESSORIES + MATERIALS
Orange Tick



*TYPAR DrainableWrap Peel and Stick is part of the TYPAR lifetime limited system warranty when used with the complete TYPAR Weather Protection System. Certain limitations and exclusions apply. See the TYPAR Weather Protection System Limited Warranty for full details located online at www.typar.com/downloads.
